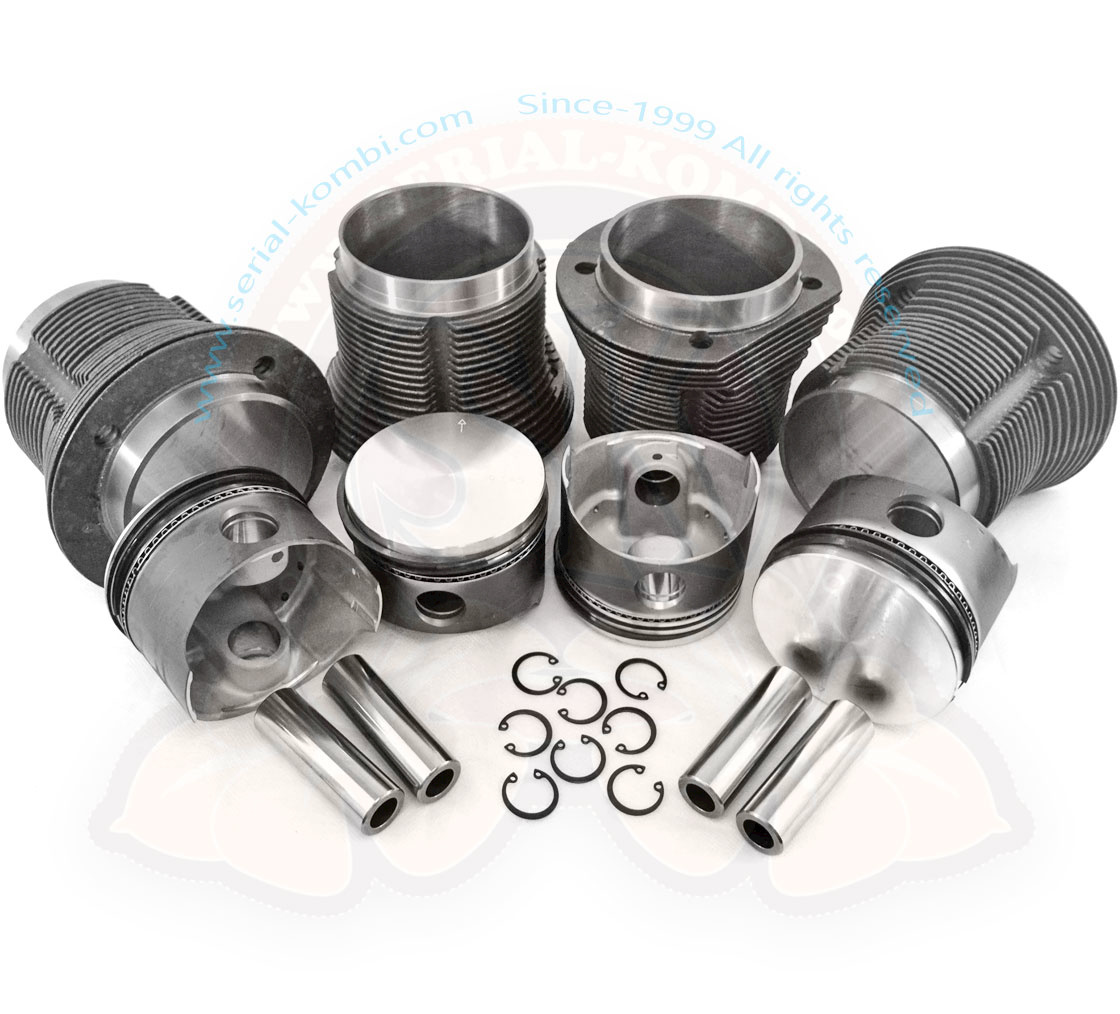

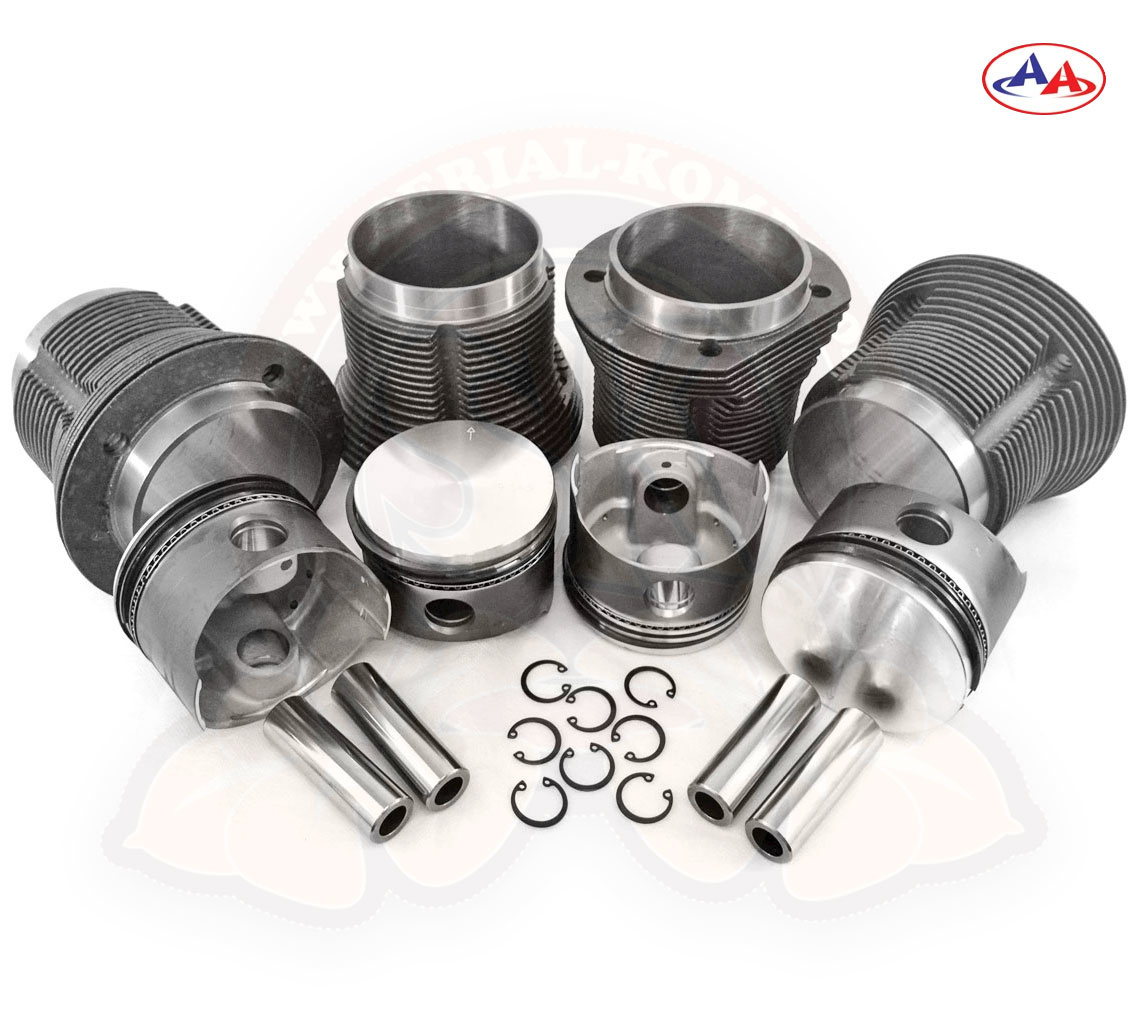

Barrel and piston set, 1776cc, 90.5x69mm, outside top 98mm, outside bottom 96mm, 8/1967-7/1979
Barrel and piston set, 1776cc, 90.5x69mm, outside top 98mm, outside bottom 96mm, 8/1967-7/1979 - Image 2

Barrel and piston set, 1776cc, 90.5x69mm, outside top 98mm, outside bottom 96mm, 8/1967-7/1979

Reference 311 198 069 F - 1776CC
279,00€
Price info
FRANCE PRIX HT (232.5€) + VAT (46.5€) = Customer price incl. VAT (279€)
Availability
Stock

2 in stock

Description

CAUTION:
The kit requires machining of the crankcase and the heads in order to be fitted.

Only for Type 1 engines 1300-1500-1600cc.
AA Performance barrels and pistons. Bore: 90.5mm
Designed for use with standard crankshaft, 69mm stroke, for 1776cc displacement.
Compression height: 39.8mm
Cylinders are cast iron.
Hypereutectic aluminium alloy pistons (high concentration of silicon for a low thermal expansion coefficient, stricter tolerances and smaller clearance of the pistons themselves).
Kit contains: 4 cylinders, 4 pistons, 4 pins, 8 clips and 1 set of rings.

Characteristics
Brands and qualities
Guaranteed quality

Compatibility T2 models

This part is present on the following models, please note the YEARS OF ASSEMBLY, refer to the item description.
1600cc PETROL 8/1967-7/1970 (B) 4 Cylinder 48 ch / 35 Kw TYPE 1 SINGLE PORT
1600cc PETROL 8/1970-7/1973 (AD) 4 Cylinder 50 ch / 37 Kw TYPE 1 TWIN PORT
1600cc PETROL 8/1973-7/1979 (AS) 4 Cylinder 50 ch / 37 Kw TYPE 1 TWIN PORT
