Barrel and piston set 1835cc, 92x69mm, thick wall barrel, outside top 101mm, outside bottom 97.2mm, 8/1967-7/1979 (Machine work required)
Barrel and piston set 1835cc, 92x69mm, thick wall barrel, outside top 101mm, outside bottom 97.2mm, 8/1967-7/1979 (Machine work required) - Image 2
Barrel and piston set 1835cc, 92x69mm, thick wall barrel, outside top 101mm, outside bottom 97.2mm, 8/1967-7/1979 (Machine work required) - Image 3

Barrel and piston set 1835cc, 92x69mm, thick wall barrel, outside top 101mm, outside bottom 97.2mm, 8/1967-7/1979 (Machine work required)

Reference 311 198 069 F - 1835CC
329,00€
Price info
FRANCE PRIX HT (274.17€) + VAT (54.83€) = Customer price incl. VAT (329€)
Availability
Stock

1 in stock

Description

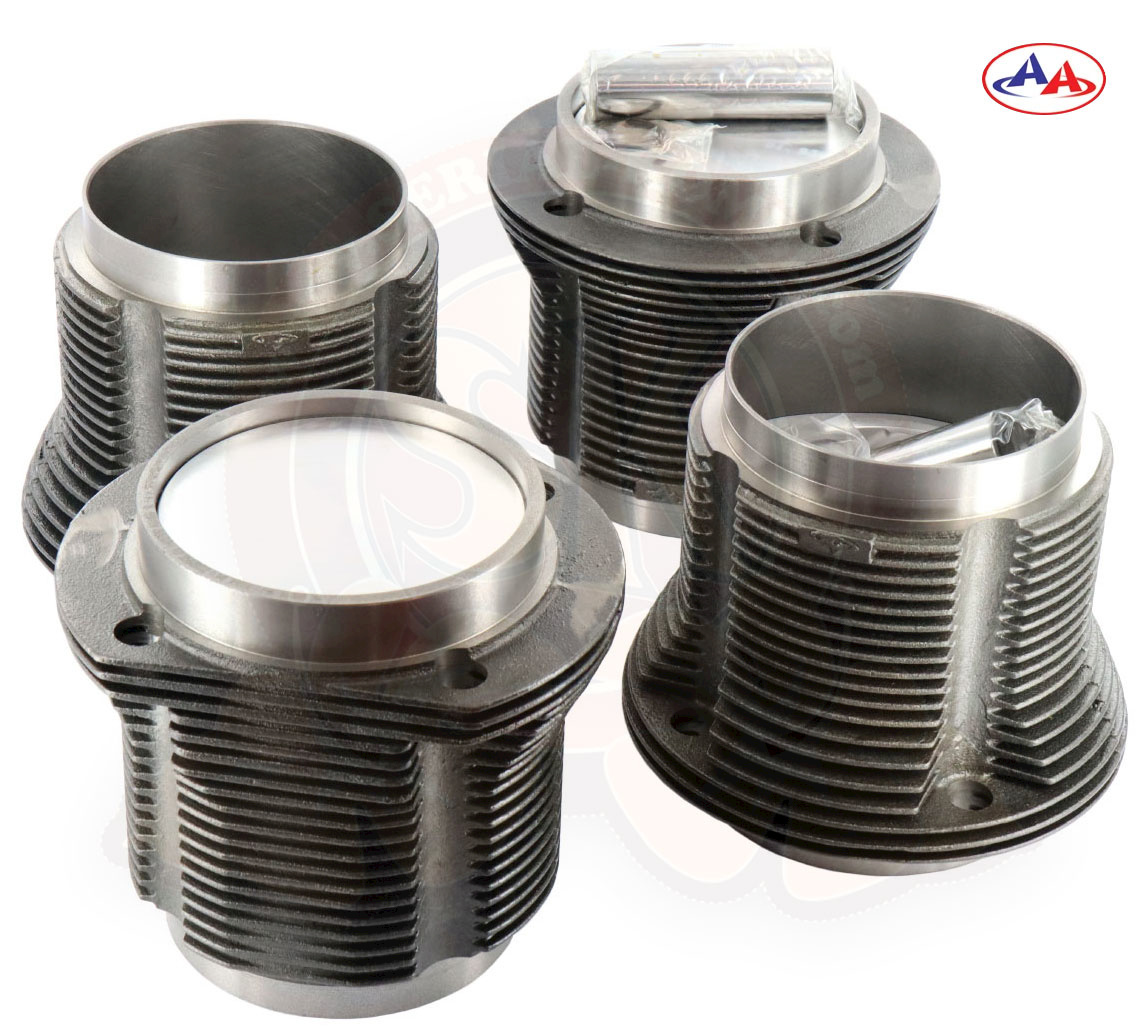

92mm Thick Wall Pistons and cylinders set for Type 1 aircooled engines.
These Cylinders are a full 2mm thicker than a standard 92mm cylinder.
Perfect for those who want the ultimate in cooling or strength for High Performance applications.
This kit does require machine work on the cylinder heads and case.
The case and heads need to be cut as if you’re fitting 94mm barrels and pistons. You will require spacers to get your desired compression ratio.
The 39.8mm Compression Height will work with small stroked cranks 69, 74, and 76

Engine size: 1835cc with 69mm crank

Stroke: 69 to 76mm

Cylinders: Cast Iron

Pistons: Hypereutectic

Compression Height: 39.8mm

Kit includes: 4 Cylinders, 4 Pistons, 1 set of Piston Rings and 4 Pins and clips.

**Machine Work Required** Rely on an experienced mechanic to install this kit.

Characteristics
Brands and qualities
Guaranteed quality

Compatibility T2 models

This part is present on the following models, please note the YEARS OF ASSEMBLY, refer to the item description.
1600cc PETROL 8/1967-7/1970 (B) 4 Cylinder 48 ch / 35 Kw TYPE 1 SINGLE PORT
1600cc PETROL 8/1970-7/1973 (AD) 4 Cylinder 50 ch / 37 Kw TYPE 1 TWIN PORT
1600cc PETROL 8/1973-7/1979 (AS) 4 Cylinder 50 ch / 37 Kw TYPE 1 TWIN PORT
